A Fully Custom Limestone Entrance Portico
This custom limestone entrance portico was designed and fabricated for a luxury private residence in Upstate New York. Developed from the architect’s drawings, the entrance was produced from white European limestone with a refined honed finish.
Completed in 2022, the project was constructed as a full limestone assembly rather than a thin stone veneer. Several architectural components were fabricated from massive stone sections reaching up to 12 inches in thickness.
Marvelous Marble’s scope included design development, stone engineering, custom fabrication, component preparation, protective crating and supply for the completed residential entrance.
Location
Upstate New York
Completed
2022
Material
White European Limestone
Finish
Honed
Project Type
Luxury Residential
Project Range
$80K–$100K
Up to 12"
Limestone Thickness
Full Limestone
Architectural Assembly
100% Custom
Based on Architect Drawings

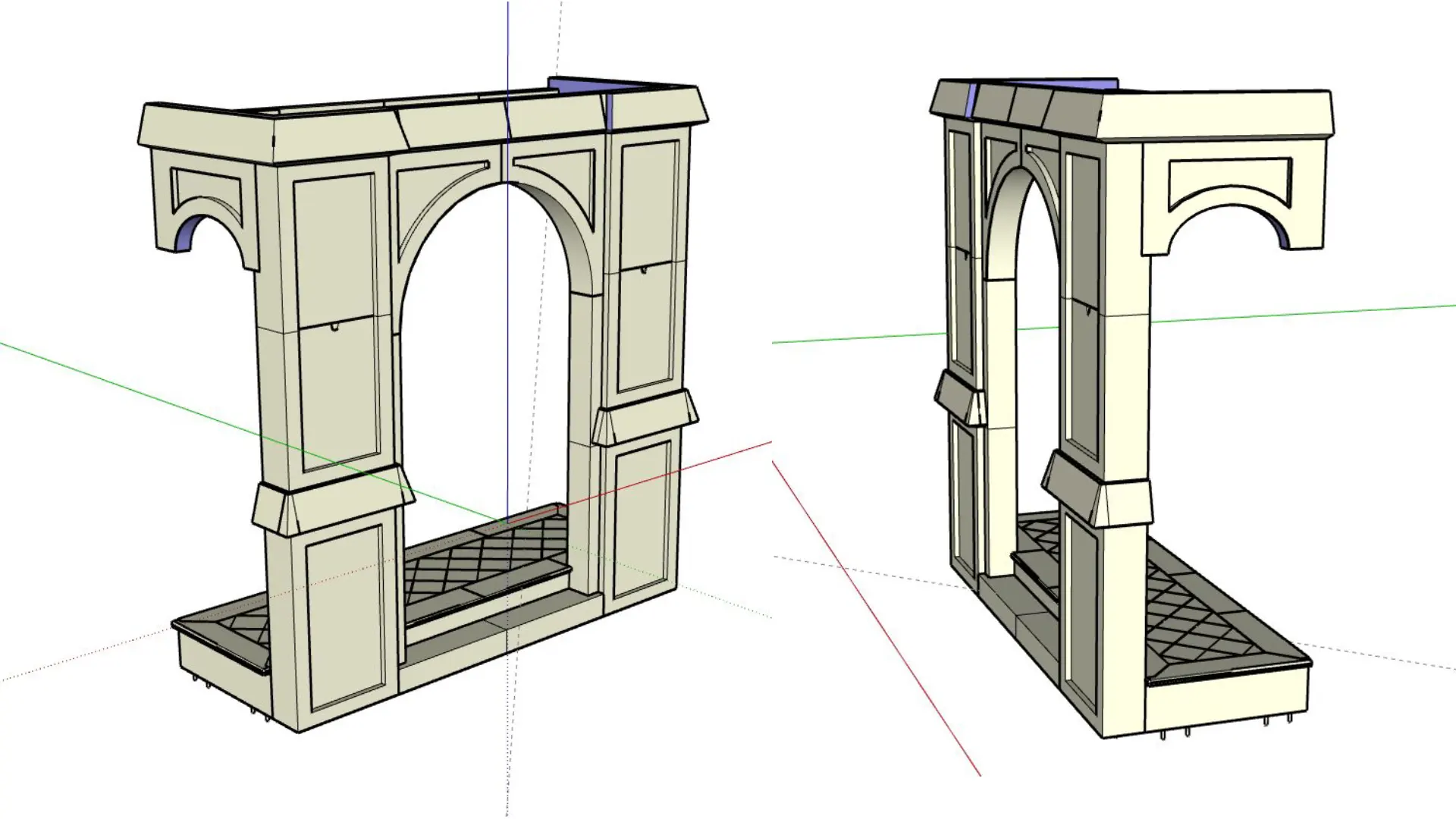

From Architect Drawings to 3D Design
The project began with architectural drawings defining the proportions and character of the custom stone entrance. These drawings were translated into a detailed three-dimensional model so the geometry, depth and arrangement of the limestone components could be evaluated before fabrication.
Because the portico was designed as a full limestone structure, the jambs, recessed panels, curved arch, projecting moldings and cornice elements had to be coordinated as one complete architectural assembly.
Limestone Shop Drawings & Component Engineering
Detailed shop drawings established the overall dimensions, profiles and individual sections of the limestone entrance portico. The exploded component model separated the structure into fabrication pieces and illustrated how the jambs, panels, arch sections, moldings, cornice and base elements would come together.
This pre-fabrication planning was particularly important because several components were produced from exceptionally thick limestone sections.

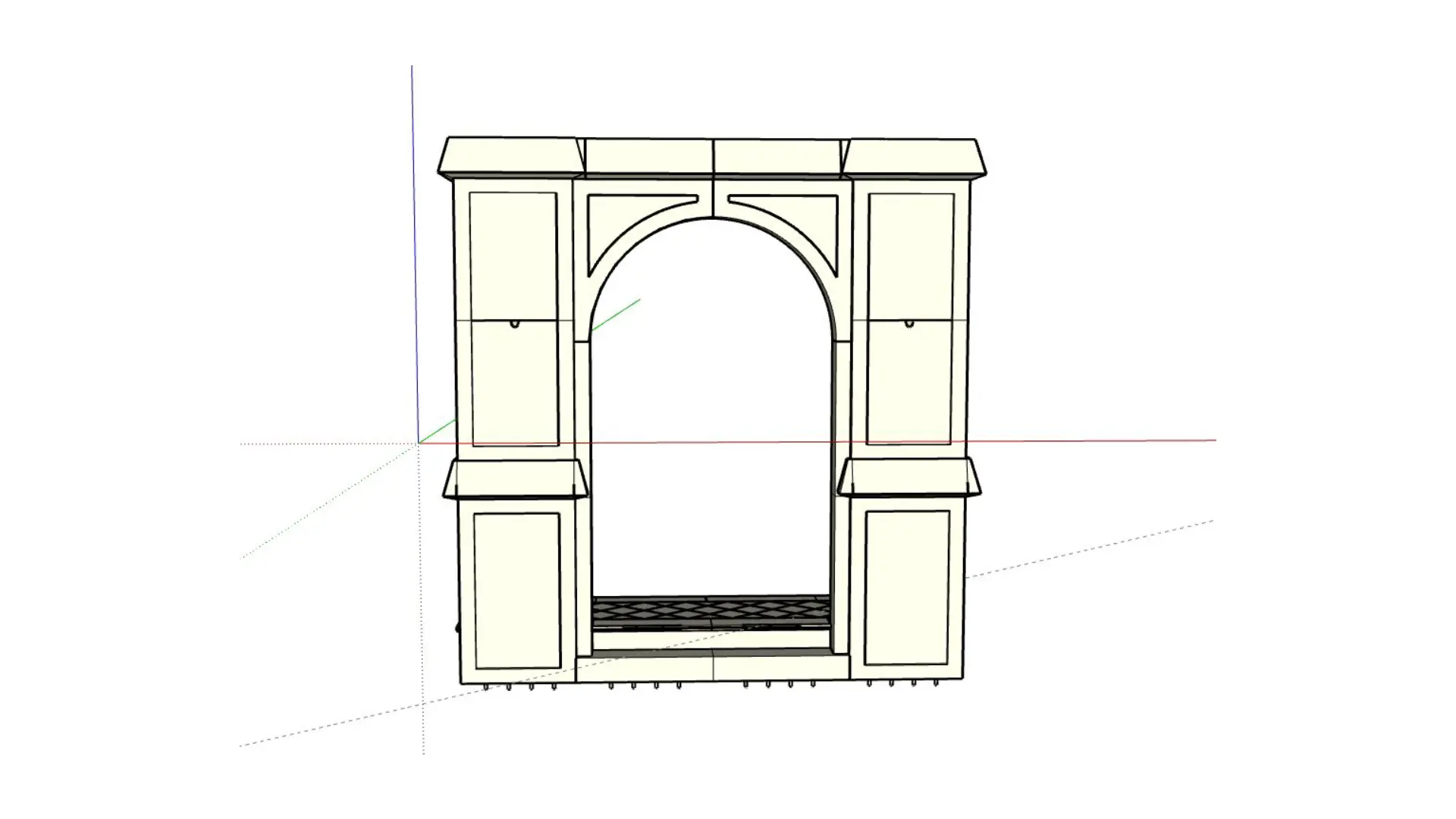

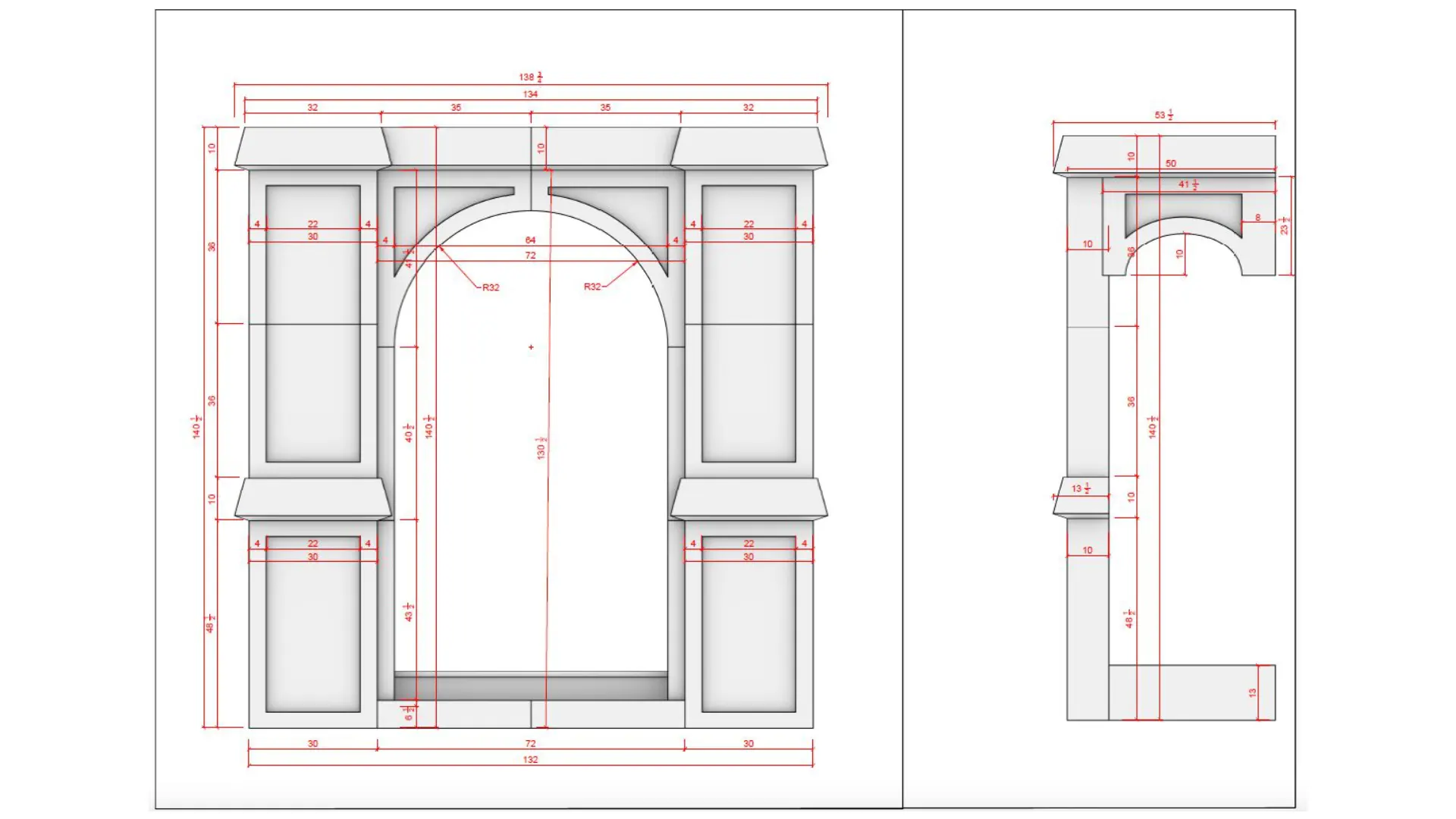

Dimensioned Portico Shop Drawing

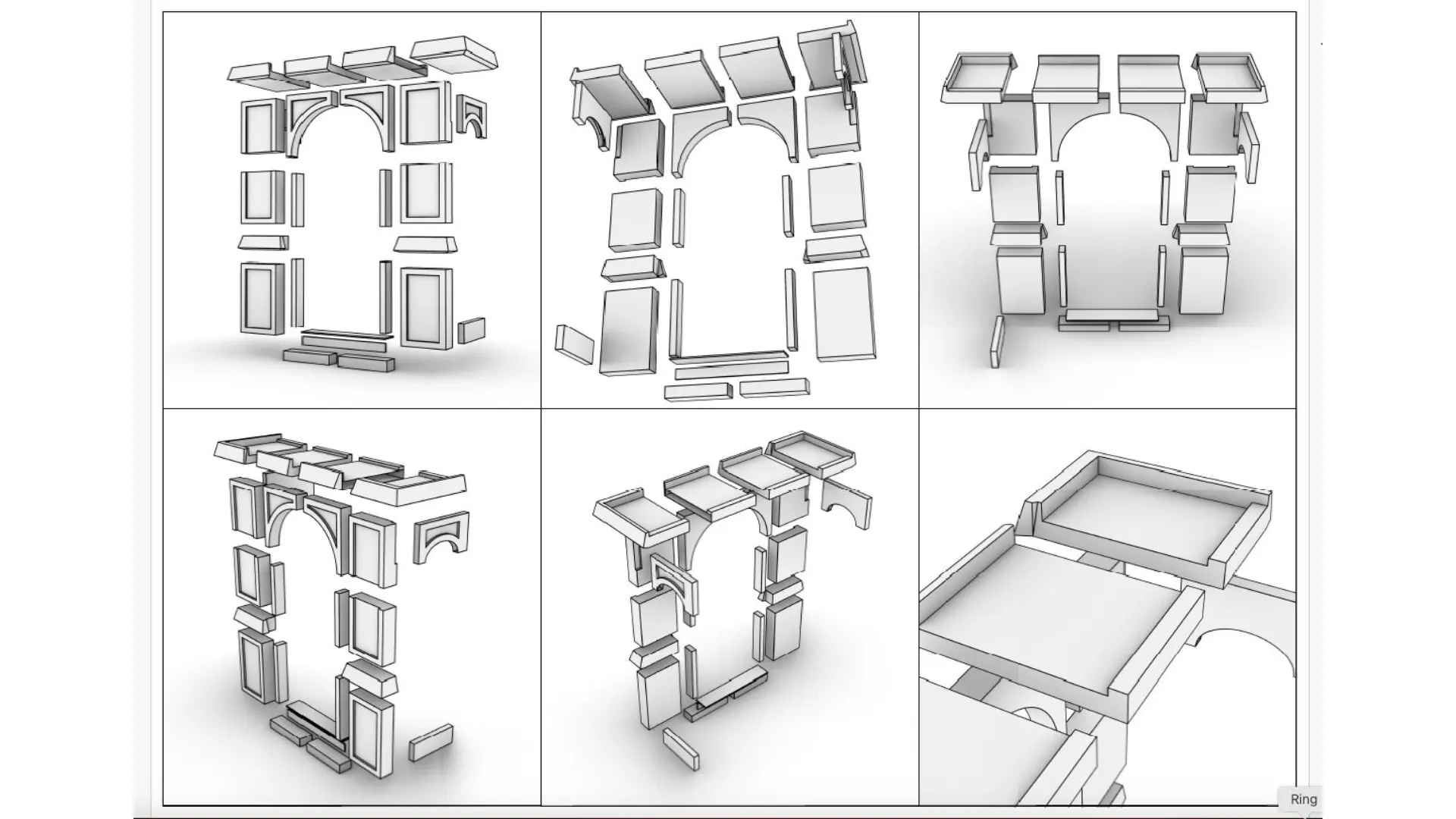

Exploded Limestone Components
Project Shop Drawings
Download the detailed portico shop drawings to review the dimensions, component profiles and fabrication documentation prepared for this custom limestone entrance.
Custom Architectural Limestone Fabrication
Selected white European limestone was fabricated specifically for the project. Large stone sections were cut and shaped into the architectural components defined by the approved shop drawings.
The recessed panels, curved arch elements, projecting moldings and substantial cornice pieces required precise dimensional cutting and careful preparation. The finished surfaces received a honed treatment, creating a refined appearance suitable for the luxury residence.

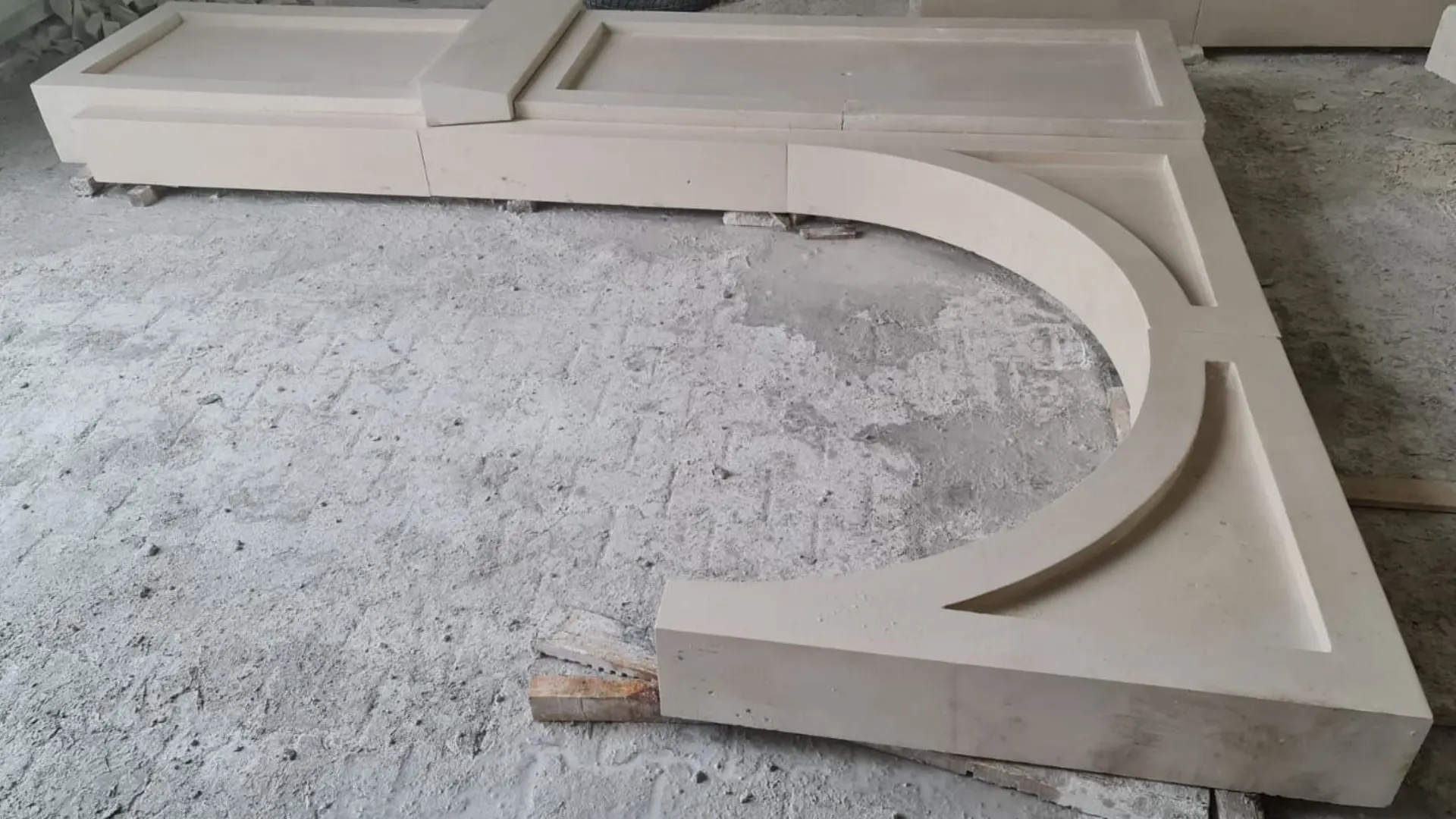

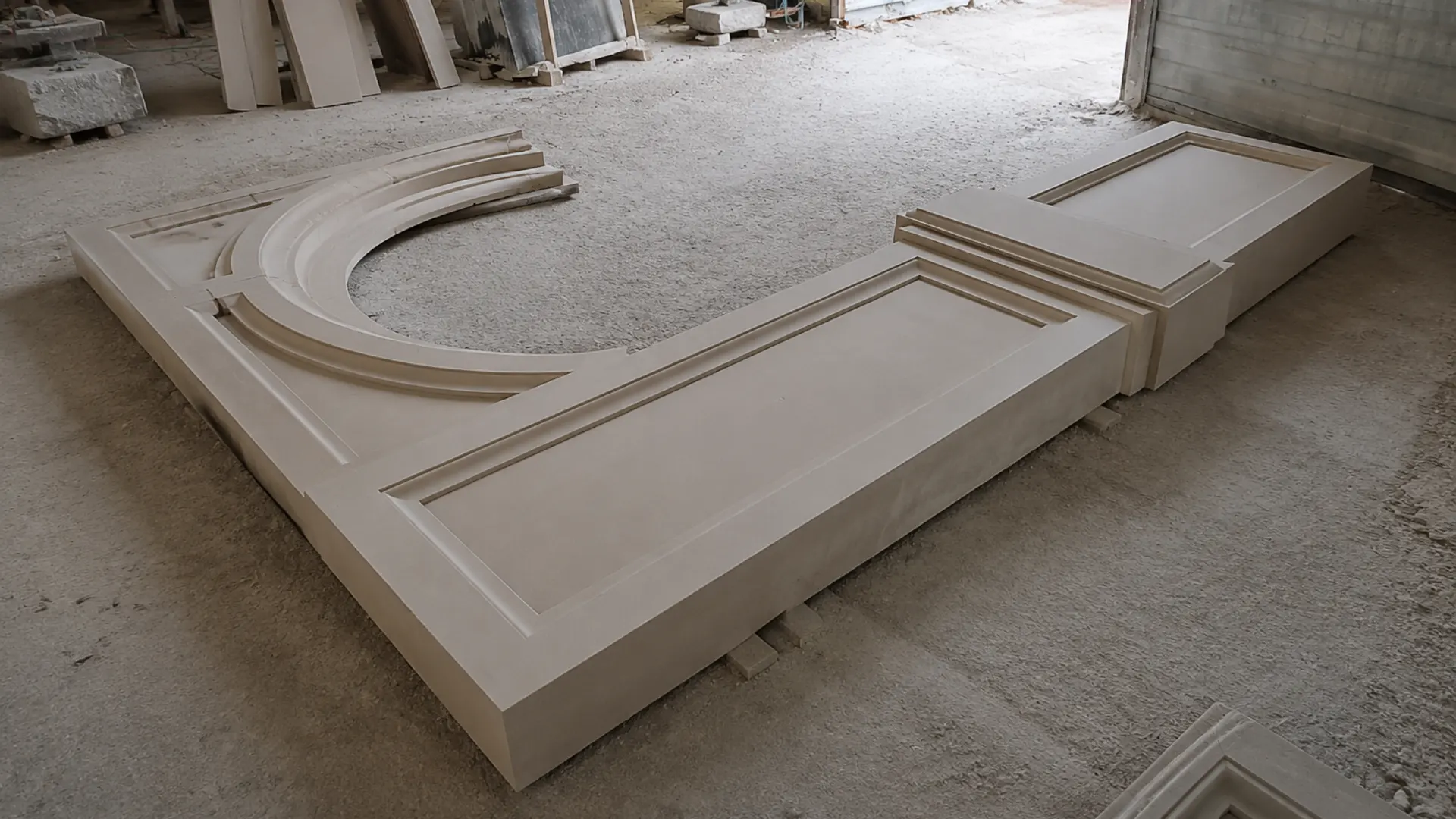

Fabricated Limestone Arch

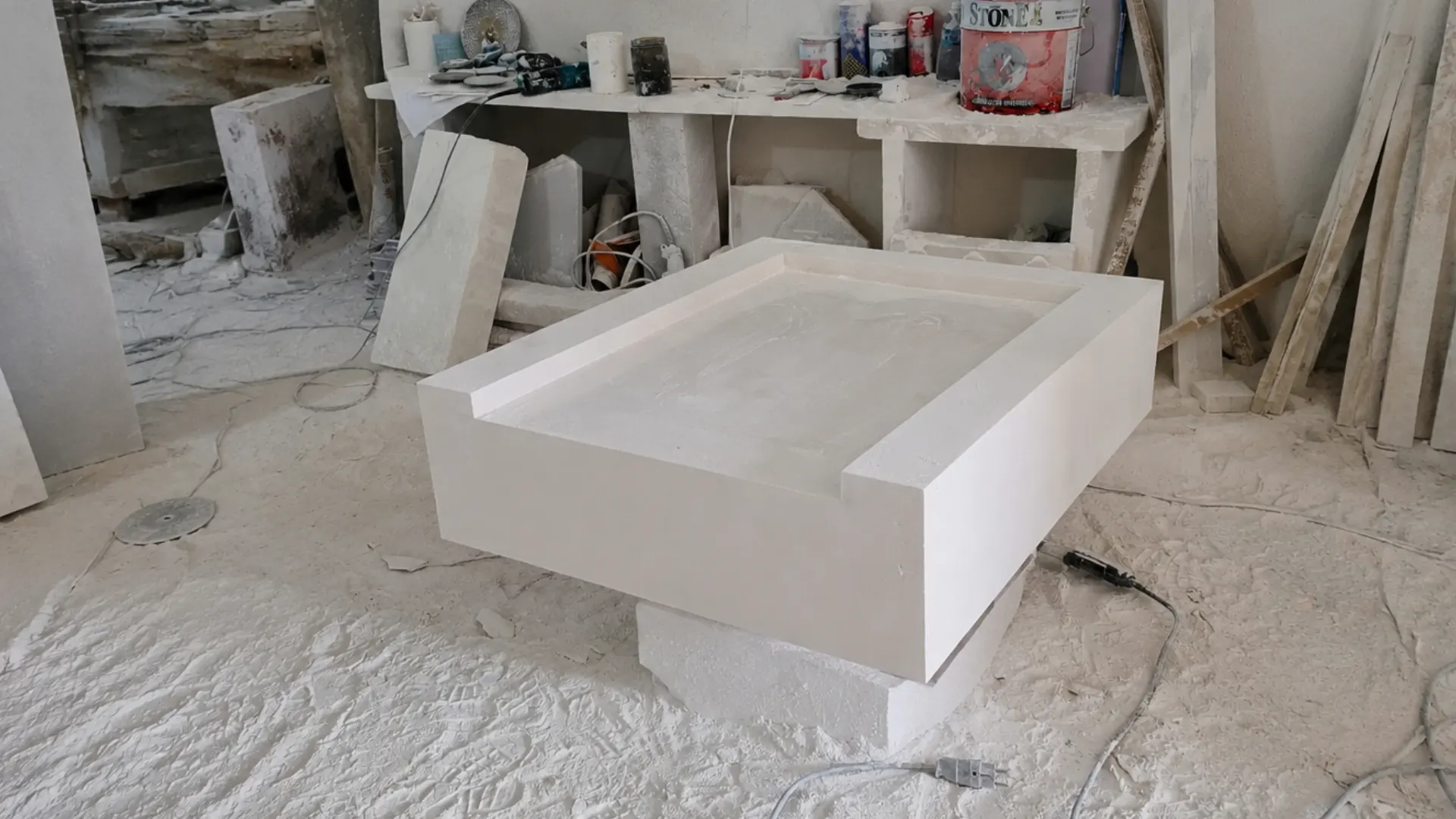

Solid Limestone Panel
Inside the Limestone Fabrication Process
These factory videos document the cutting and preparation of the white European limestone used to produce the custom entrance components.
Limestone Cutting — Video 01
Limestone Cutting — Video 02
Protective Crating & Transportation
Due to the weight, thickness and custom geometry of the architectural limestone components, the completed pieces were organized and packed in reinforced wooden crates for transportation.
Each crate was prepared as part of a coordinated shipment so the individual portico components could be identified, handled and delivered systematically. The crates were then loaded into a shipping container for delivery to the project.

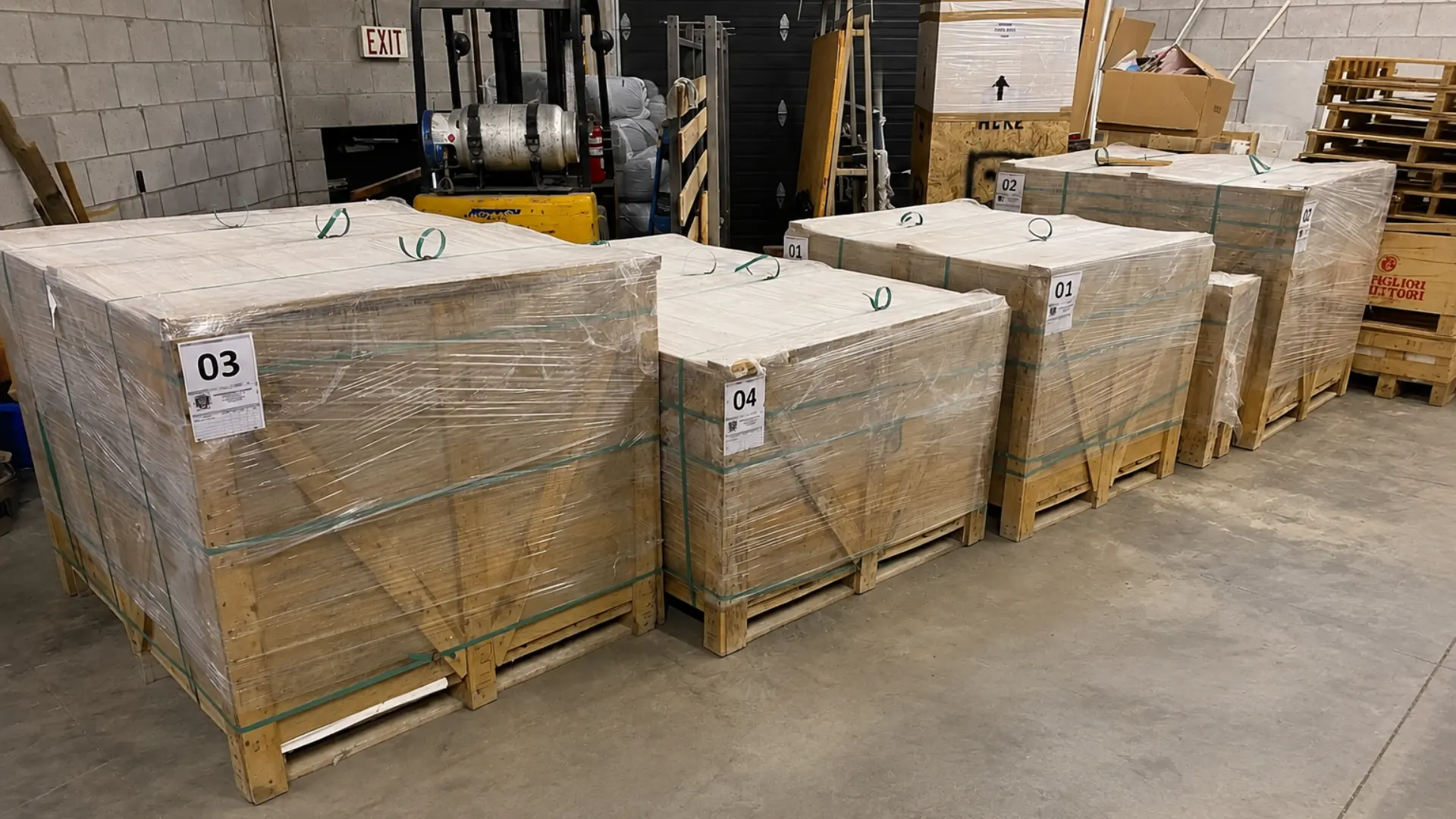

Protected Limestone Components

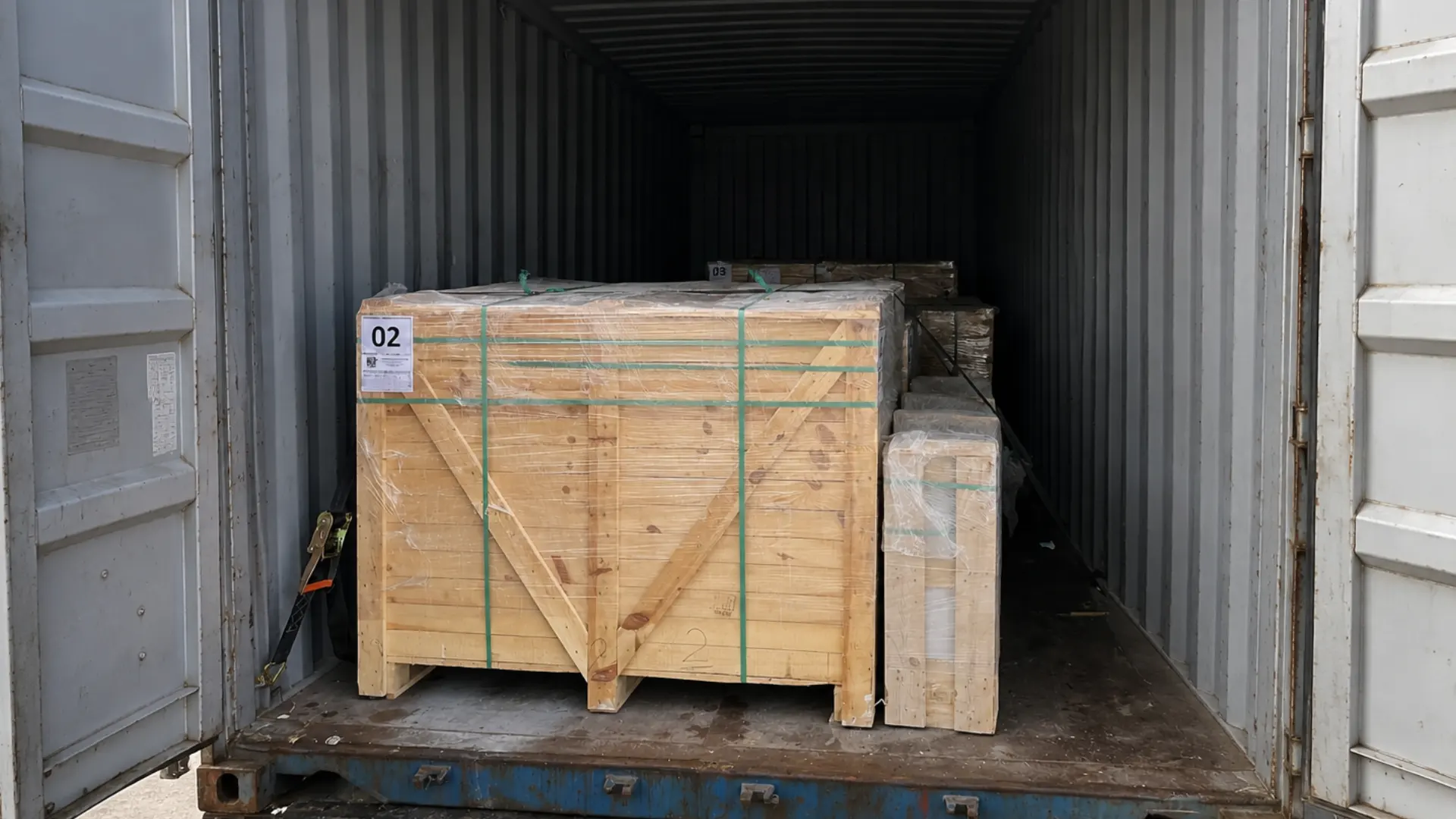

Container Loading & Shipment

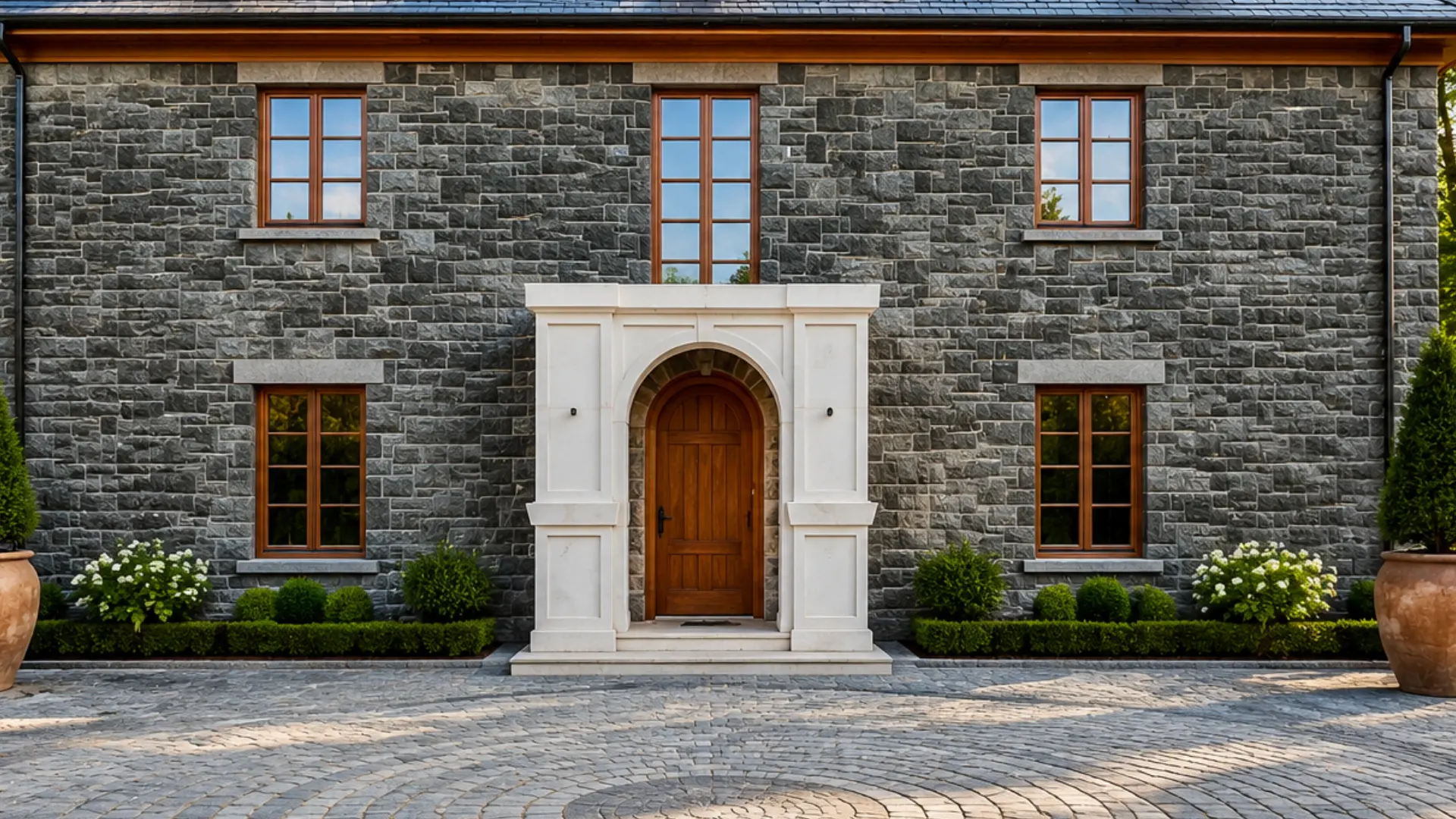

The Completed Limestone Entrance Portico
The completed custom limestone entrance portico creates a strong architectural focal point against the residence’s darker masonry façade. The contrast between the white European limestone, gray exterior stone and natural wood entrance door emphasizes the depth and geometry of the stonework.
Although the entrance is composed of numerous individually fabricated limestone pieces, the completed installation reads as a unified architectural structure consistent with the original design and fabrication models.
Planning a Custom Limestone Entrance?
Marvelous Marble develops custom limestone porticos, entrance surrounds and architectural stone components from drawings, dimensions and design references.
Send us your architectural plans or project requirements to begin developing a custom stone solution for your residence.
